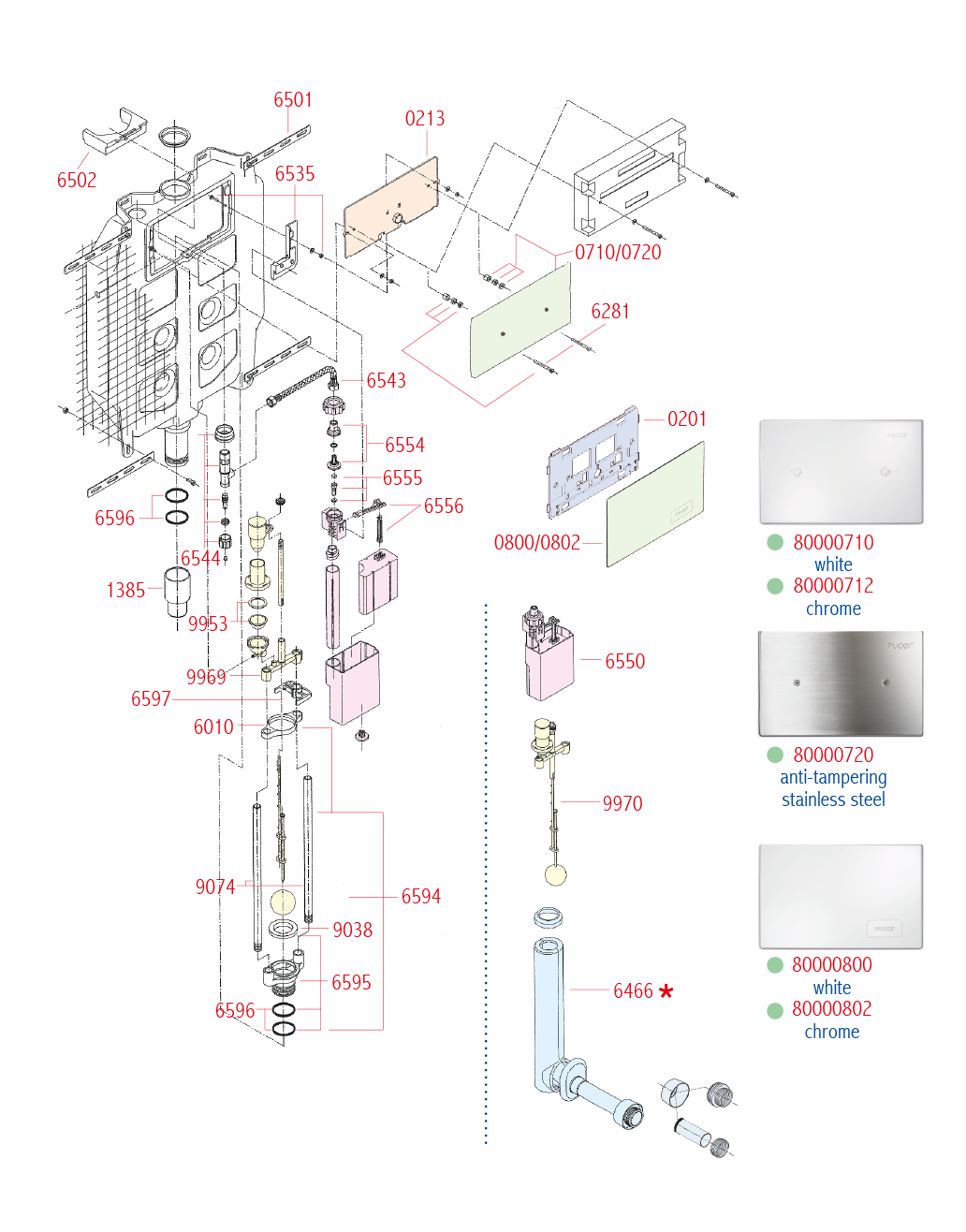

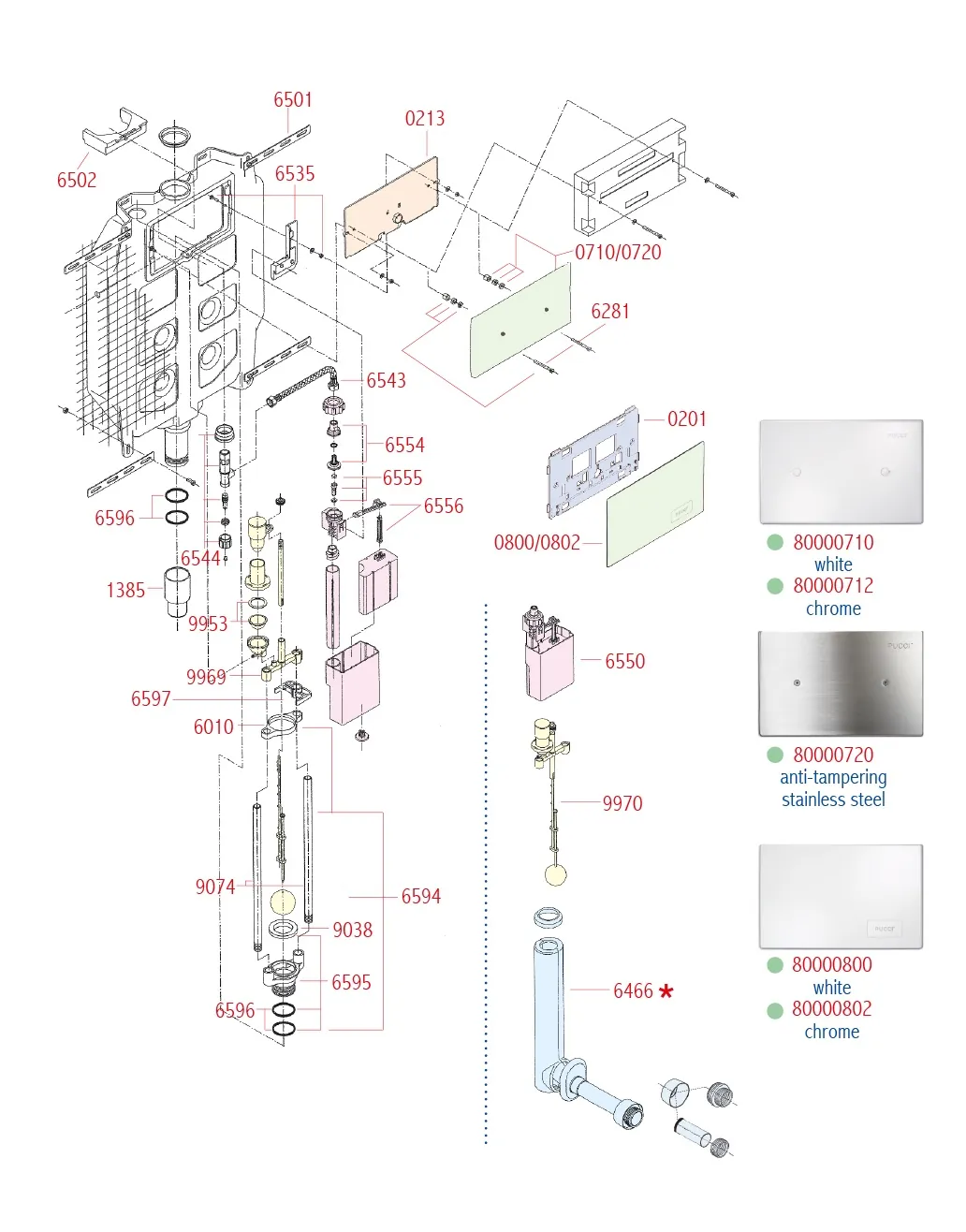

PUCCI^® SARA PNEU

ORIGINAL SPARE PARTS

Code	Part	Description
80000201	1	Plate support frame
80000213	1	PNEU - MATIC inspection door
80000710	1	Cover plate - white
80000712	1	Cover plate - chrome
80000720	1	Anti-tampering stainless steel plate
80000800	1	White plate with frame
80000802	1	Chrome plate with frame
80001385	1	Ø 50-40 mm reduction ring for flush pipe
80006010	5	Ball guide frames
80006281	10	M5 frame screws
80006466*	1	35x11 cm adjustable flush pipe (+2-2 cm), with lining and cap, 29 cm joint, eccentric escutcheon and Ø 48-58 mm combined clamp with cover - white
80006501	1	4 brackets with bolts for wall mounted tank
80006502	5	Spacer V95
80006535	2	Valve support brackets with screws
80006543	1	F.F. flexible pipe with gaskets
80006544	1	1/2” brass stop cock with polyethylene support
80006550	1	Complete valve set
80006554	1	Brass nipple with inner seat
80006555	10	10x5 mm plungers with gaskets
80006556	1+1	Valve activation levers
80006594	1	Pull-out seat fitted with overflow pipes and ball guide frame
80006595	1	Pull-out seat with 2 OR 147 and seat gasket
80006596	8	OR 147 for pull-out seat and tang
80006597	5	Spacer frames
80009038	10	Ball seat gaskets
80009074	6	47 cm overflow pipes suitable for all models
80009953	5	Half-sphere and anti-friction gaskets
80009969	1	Telescopic stand
80009970	1	Ball lifting set

PUCCI® SARA PNEU
