PUCCI^® SARA 9l PNEU MONTAGGIO RAPIDO^®

PNEUMATIC PUSH-BUTTON - FOR BRICK WALLS - FOR WALL MOUNTED BOWL

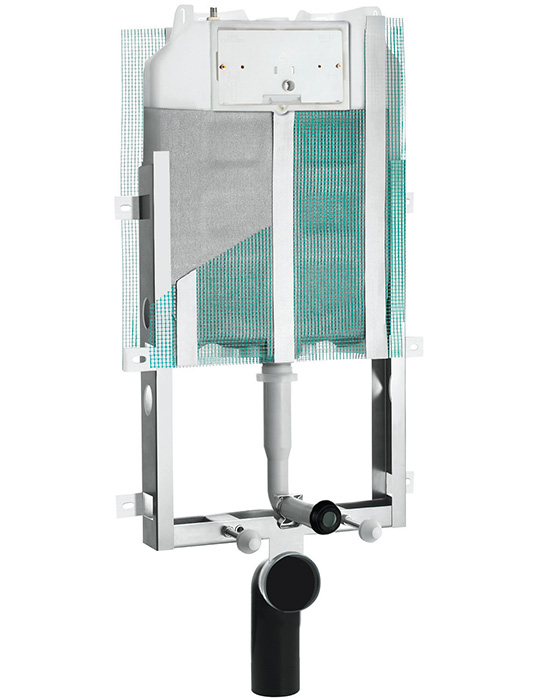

Pucci SARA 9 l PNEU Montaggio Rapido

1322000231

SARA 9l PNEU
Anti-condensation

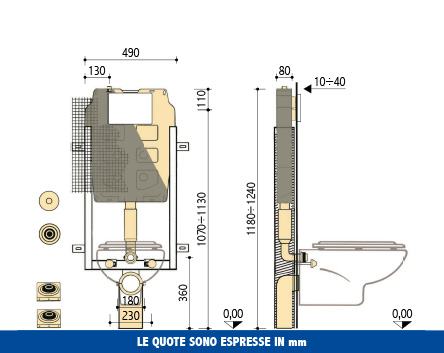

Pucci SARA 9 l PNEU Montaggio Rapido – technical drawing with dimensions

TECHNICAL DATA

dynamic pressure 0,1-10 bar

maximum water temperature 25°C

pre - determined rinsing configuration 9l

rinsing regulation range 6l

Pucci SARA 9 l PNEU Montaggio Rapido

Spare parts Completing the installation Sanitary stands

FIELDS OF APPLICATION

For brick walls
Partial or total height front wall fixing
For wall mounted bowl
Single quantity total rinsing

FEATURES AND EQUIPMENT

Polyethylene tank 8 cm total thickness
Anti-condensation
Plaster holder pre-built mesh
Pneumatic sphere lifting unit
Single quantity total rinsing
To complete installation:: pneu push-buttons page 72 - 73
cover plates page 73
Water connection from above misaligned on the left
1/2” stop cock with support
23 x 25 cm flush pipe and protection cap
Ø 60-40 mm rubber plug
From Ø 40 mm to Ø 45 extension socket, OR 143 and Ø 60-45 clamp
Gasket lubricant package
Polystyrene foam protection for door and inner parts

Zinc-coated frame with 6 expandible fastening straps
Distance between bowl fitting holes 180/230 mm
2 M12 threaded rods with bowl fixing nuts
Twitching flush curve Ø 90 mm collar
Ø 90 mm PE flush curve with gasket
Ø 90 mm protection cap
Ø 90 mm extended sleeve with gasket
2 washers with eccentric short joint for WC regulation
2 protection caps
Fixing materials, brackets and plugs
