PUCCI^® SARA 9l PNEU MODULO

TO BE INSTALLED IN FRONT OF BRICK OR PREBUILT WALLS - FOR WALL MOUNTED BOWL

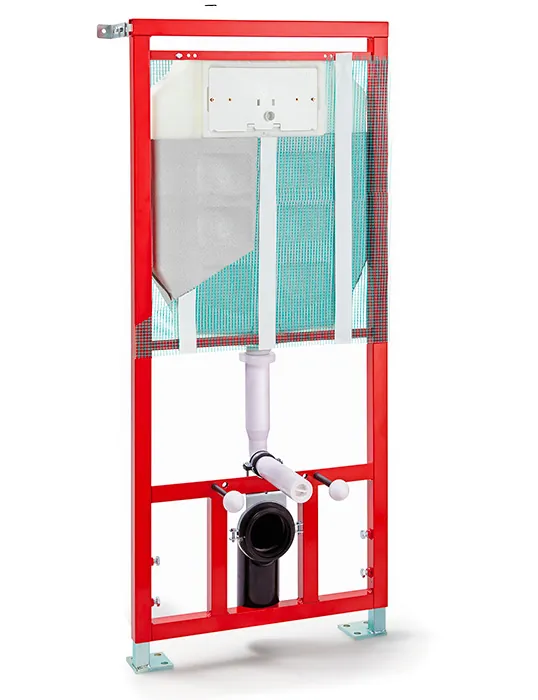

Pucci SARA 9 l PNEU Modulo

1323010231

SARA 9l PNEU
Anti-condensation

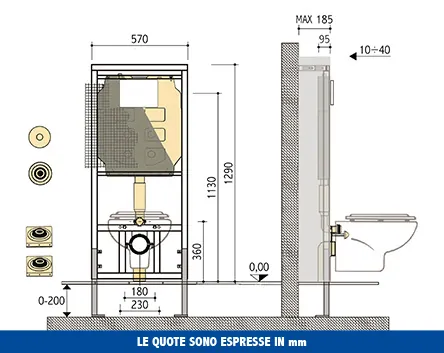

Pucci SARA 9 l PNEU Modulo – technical drawing with dimensions

TECHNICAL DATA

dynamic pressure 0,1-10 bar

maximum water temperature 25°C

pre - determined rinsing configuration 9l

rinsing regulation range 6l

Spare parts Completing the installation Sanitary stands

FIELDS OF APPLICATION

Partial or total height front wall fixing
Light plasterboard walls
Single quantity total rinsing
For wall mounted bowl

FEATURES AND EQUIPMENT

Polyethylene tank 8 cm total thickness
Anti-condensation
Plaster holder pre-built mesh
Pneumatic sphere lifting unit
Single quantity total rinsing
Water connection from above misaligned on the left
1/2” stop cock with support
23 x 25 cm flush pipe and protection cap
Ø 60-40 mm rubber plug
From Ø 40 mm to Ø 45 extension socket OR 143 and Ø 60-45 mm clamp
Gasket lubricant package
Polystyrene foam protection for door and inner parts

Dust-painted selfstanding frame
Frame profile width 35 mm
Distance between bowl fitting holes 180/230 mm
2 M12 threaded rods with bowl fixing nuts
Adjustable basic from 0 to 200 mm zinc-coated plates to be anchored
Basic revolving plates
Ø 110-90 mm reduction ring
Ø 90 mm PE flush curve with gasket
Ø 90 mm protection cap
Ø 90 mm extended sleeve with gasket
2 washers with eccentric short joint for WC regulation
2 protection caps
Fixing materials, brackets and plugs
