Sanitary stands to completion MODULO 6

Pucci supports for sanitaryware

23001006

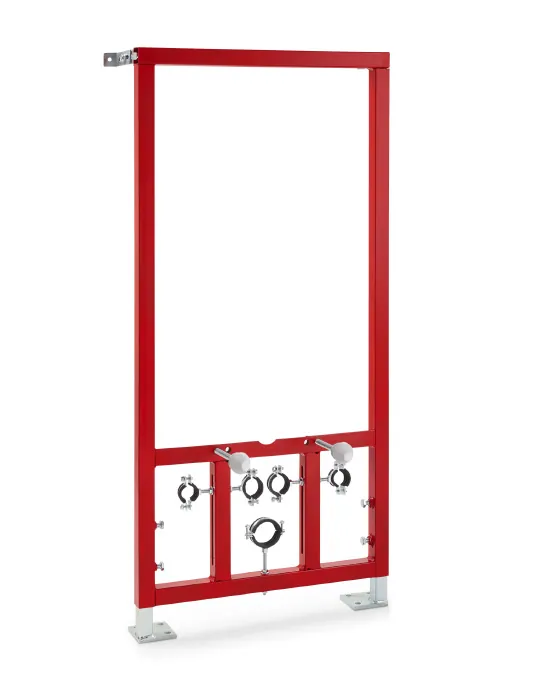

Suspended bidet frame with assembly kit

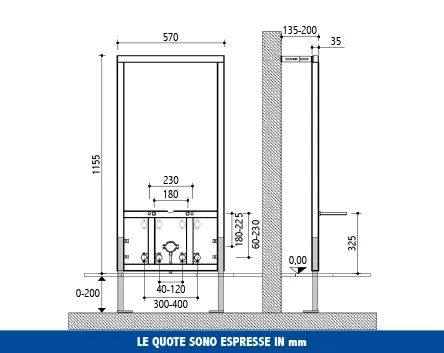

Pucci supports for sanitaryware – technical drawing with dimensions

FIELDS OF APPLICATION

Partial or total height front brick wall fixing
Light plasterboard walls
For suspended bidet

FEATURES AND EQUIPMENT

Dust-painted selfstanding frame
Frame profile width 35 mm
Distance between bowl fitting holes 180/230 mm
2 M12 threaded rods with bidet fixing nuts
Adjustable basic from 0 to 200 mm zinc-coated plates to be anchored
Basic revolving plates
2 acoustically isolated Ø 25 fixing collars for water supply
2 acoustically isolated Ø 32 fixing collars for water supply
Acoustically isolated Ø 48 fixing collar for flushing
Height adjustable fixing for technical curve
Height and width adjustable fixing for taps
2 washers with eccentric short joint for bidet regulation
2 protection caps
Fixing materials, brackets and plugs

Pucci supports for sanitaryware

23001007

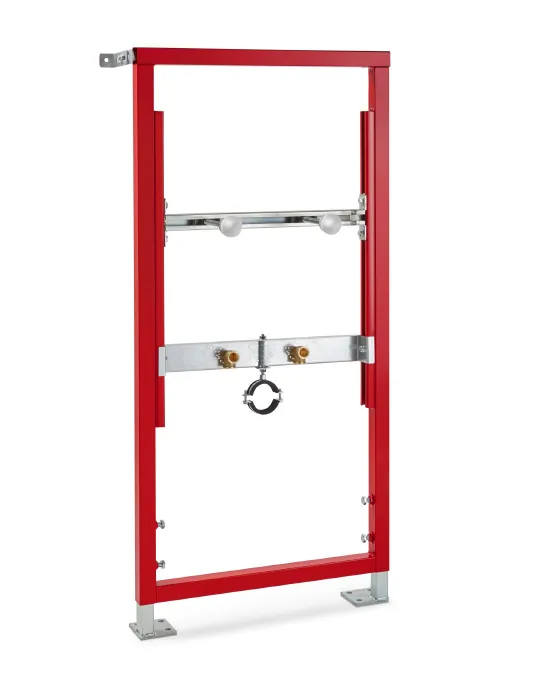

Suspended washbasin frame with assembly kit

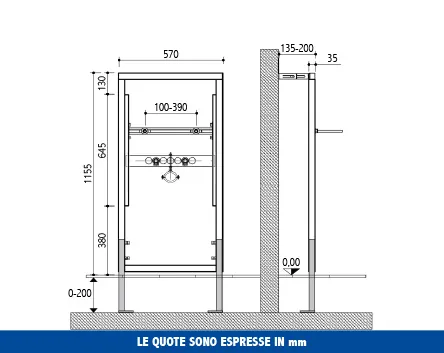

Pucci supports for sanitaryware – technical drawing with dimensions

FIELDS OF APPLICATION

Partial or total height front brick wall fixing/li>
Light plasterboard walls
For suspended washbasin

FEATURES AND EQUIPMENT

Dust-painted selfstanding frame
Frame profile width 35 mm
Height adjustable sanitary supporting clamp
Distance between bowl fitting holes 100 and 390 mm
Height adjustable bearing bracket for water supply and flushing
2 M12 threaded rods with washbasin fixing nuts
Adjustable basic from 0 to 200 mm zinc-coated plates to be anchored
Basic revolving plates
2 1/2” elbows for water supply
Acoustically isolated and height adjustable Ø 48 fixing collar for flushing
2 washers with eccentric short joint for washbasin regulation
2 protection caps
Fixing materials, brackets and plugs
