PUCCI^® SARA TRONIC

ORIGINAL SPARE PARTS

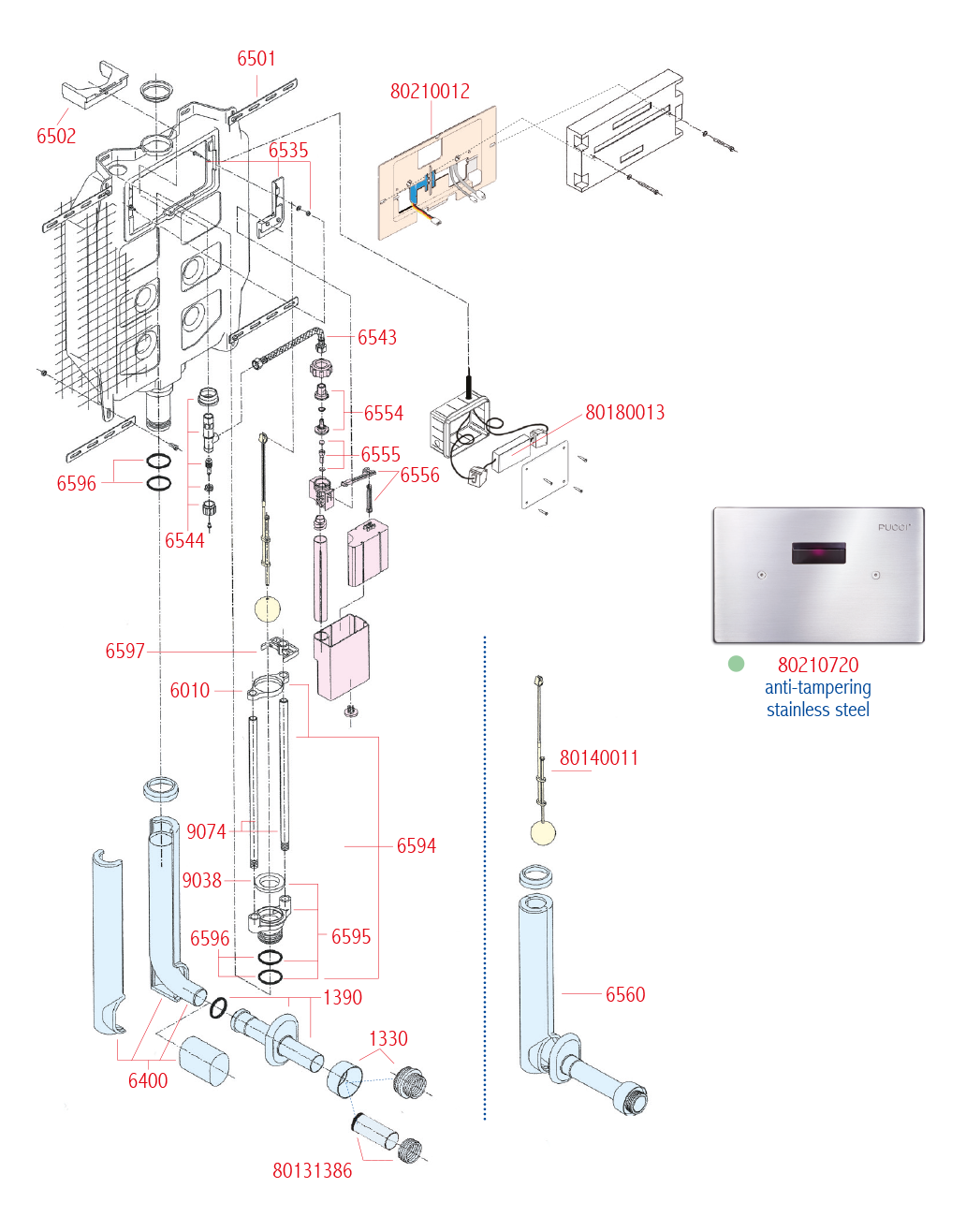

Code	Part	Description
80001330	1	Ø 48-58 mm combined clamp with cover - white
80001390	1	Eccentric escutcheon set - OR 143 22 cm joint - white
80006010	5	Ball frames guide
80006111	1	Eco-Sara water supply kit
80006400	1	35x11 cm Ø 50-40 mm discharge pipe with lining and cap
80006501	1	4 brackets with bolts for wall mounted tank
80006502	5	Spacer V95
80006535	2	Valve support brackets with screws
80006543	1	F.F. flexible pipe with gaskets
80006544	1	1/2” brass stop cock with polyethylene support
80006554	1	Brass nipple with inner seat
80006555	10	Plungers with 10x5 mm gaskets
80006556	1+1	Valve activation levers
80006560	1	35x11 cm adjustable flush pipe (+2-2 cm), with lining and cap, 22 cm joint, eccentric escutcheon and Ø 48-58 mm combined clamp with cover - white
80006594	1	Pull-out seat fitted with overflow pipes and ball guide frame
80006595	1	Pull-out seat with 2 OR 147 and seat gasket
80006596	8	OR 147 for pull-out seat and tang
80006597	5	Spacer frames
80009038	10	Ball seat gaskets
80009074	6	47 cm overflow pipes for all models
80130981	4	Cover plate fastening screws
80131386	1+1	Bowl connection kit with pipe expansion sleeve Ø 40-45 mm with OR 143 and clamp Ø 55-44 mm
80140011	1	Complete set with ball - small rod - run lock
80180013	1	220 VAC - 12 VDC power supply with 3 m cable and connector
80210012	1	Inspection door with servomotor and board with Bluetooth
80210720	1	Stainless steel cover plate with IR sensor, vandal proof locking screws supplied with wrench
