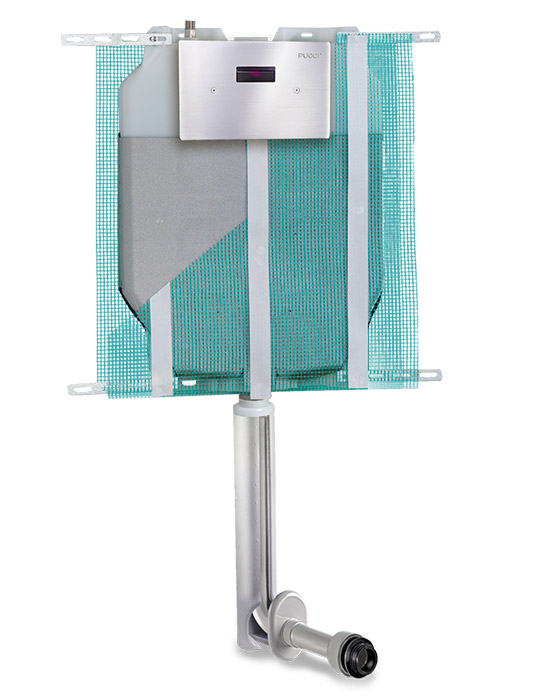

PUCCI^® SARA TRONIC 9l / 6l / 4l

ELECTRIC PULSE - FOR BRICK WALLS - FOR FLOOR MOUNTED BOWL

rinsing pipe adjustment
4 cm (+ 2 - 2 cm) after installation

EMC Directive 2014/30/EU – standards EN 55014-1: 2021/A11:2020 and EN 55014-2:2021 together with EN IEC 61000-3-2:2019 and EN 61000-3-3:2013/A1:2019

LVD Directive 2014/35/EU – standard EN 60335-1: 2012/A1:2019/A2:2019/ AC:2014/ A11:2014/ A12:2017/ A13: 2017 / A14:2019

SARA TRONIC 9l / 6l / 4l
Vandal proof
maximum safety

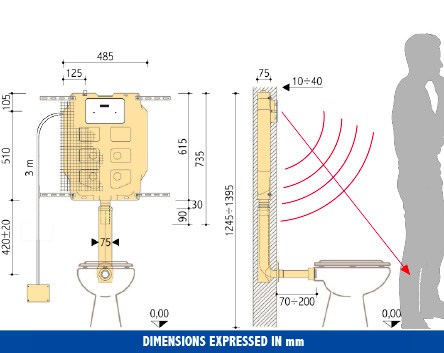

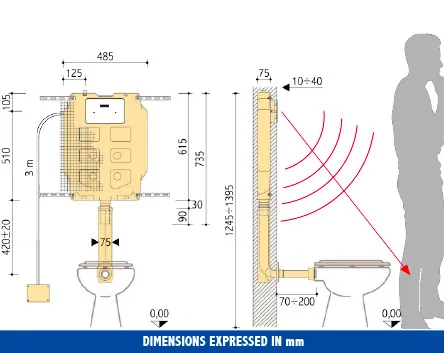

Pucci SARA Tronic 9/6/4 l – technical drawing with dimensions

dynamic pressure 0,1-10 bar

maximum water temperature 25°C

rinsing quantity predetermined setting - out 9l

rinsing regulation range 9l / 6l / 4l

user detection distance from 0.5 to 1.5 metres

preordained setting 0.8 metres

sensor incline for normal bowls

Polyethylene tank 7,5 cm total thickness
Anti-condensation
Plaster holder pre-built mesh
Stainless steel cover plate with IR sensor vandal proof locking screws supplied with wrench
Inspection door with servomotor and board with bluetooth
Frontal servocontrol with two quntities rinsing
Water connection from above misalinied on the left
1/2” stop cock with support
4 supporting brackets with tank vastening screws
35 x 11 cm adjustable flush pipe (+2-2 cm)
Foam protection, convers and cap for rinsing pipe ajustment
Eccentric escutcheon and 22 cm joint
Ø 48-58 mm combined clamp with clamp cover
From Ø 40 mm to Ø 45 mm extension socket, OR 143 and Ø 55-44 mm clamp
Gasket lubricant package
Foam protection for door and inner parts

PUCCI® SARA TRONIC 9l / 6l / 4l
