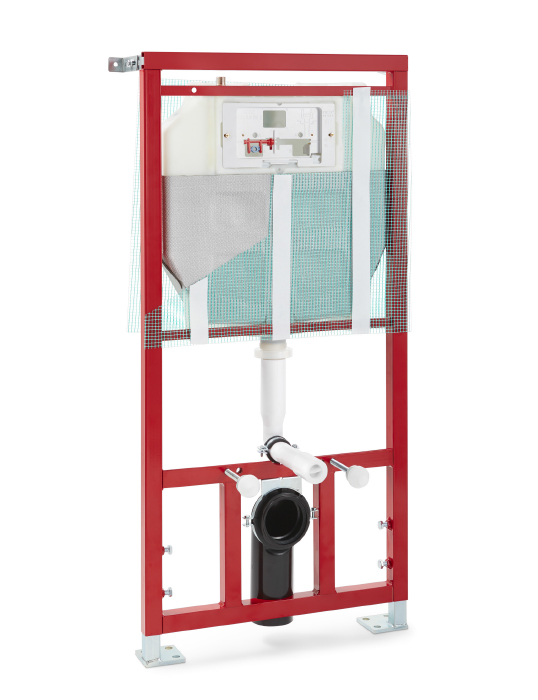

PUCCI^® SARA 6l MODULO

TO BE INSTALLED IN FRONT OF BRICK OR PREBUILT WALLS - FOR WALL MOUNTED BOWL

SARA 6l
Anti-condensation

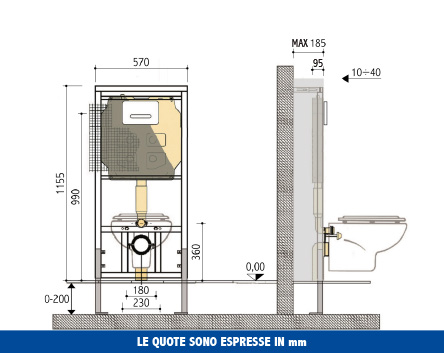

Pucci SARA 6 l Modulo – technical drawing with dimensions

dynamic pressure 0,1-10 bar

maximum water temperature 25°C

pre - determined rinsing configuration 6l

rinsing regulation range 4l

Polyethylene tank 8 cm total thickness
Anti-condensation
Plaster holder pre-built mesh
Front push-button control with single quantity rinsing even with partial flushing
Water connection from above misaligned on the left
1/2” stop cock with support
19 x 25 cm flush pipe and protection cap
Ø 60-40 mm rubber plug
From Ø 40 mm to Ø 45 extension socket
OR 143 and Ø 55-44 mm clamp
Gasket lubricant package
Polystyrene foam protection for door and inner parts

PUCCI® SARA 6l MODULO
