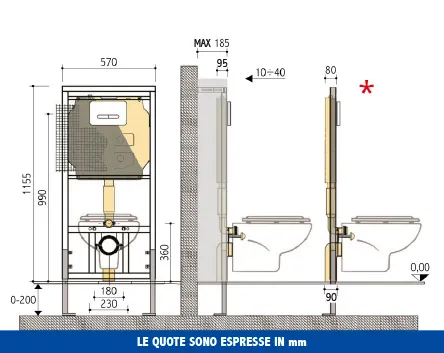

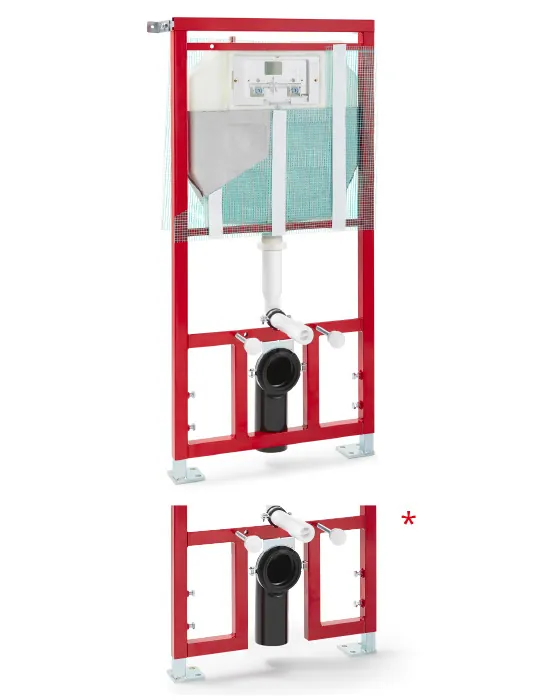

PUCCI^® eco^® 6l - 3l MODULO

TO BE INSTALLED IN FRONT OF BRICK OR PREBUILT WALLS - FOR WALL MOUNTED BOWL

1323360201

eco^® 6l – 3l
Anti-condensation

* 1723360201

eco^® 6l – 3l
Anti-condensation

TECHNICAL DATA

dynamic pressure 0,1-10 bar

maximum water temperature 25°C

rinsing quantity predetermined setting - out 6-3l

long - rinsing regulation range 6-4l

short - rinsing regulation range 3 - 2,5 - 2l

Spare parts Accessories Sanitary stands

FIELDS OF APPLICATION

Partial or total height front brick wall fixing
Light plasterboard walls
Two quantities water rinsing
For wall mounted bowl
Light plasterboard walls 8 cm

FEATURES AND EQUIPMENT

Polyethylene tank 8 cm total thickness
Anti-condensation
Plaster holder pre-built mesh
Front control with two quantities rinsing
Water connection from above misaligned on the left
1/2” stop cock with support
19 x 25 cm flush pipe and protection cap
Ø 60-40 mm rubber plug
From Ø 40 mm to Ø 45 extension socket
OR 143 and Ø 60-45 mm clamp
Gasket lubricant package
Polystyrene foam protection for door and inner parts

Dust-painted selfstanding frame
Frame profile width 35 mm
Distance between bowl fitting holes 180/230 mm
2 M12 threaded rods with bowl fixing nuts
Adjustable basic from 0 to 200 mm zinc-coated plates to be anchored
Basic revolving plates
Ø 110-90 mm reduction ring
Ø 90 mm PE flush curve with gasket
Ø 90 mm protection cap
Ø 90 mm extended sleeve with gasket
2 washers with eccentric short joint for WC regulation
2 protection caps
Fixing materials, brackets and plugs
