PUCCI® VIVA® 9l

FLUSH PIPES AND INSTALLATION TYPES

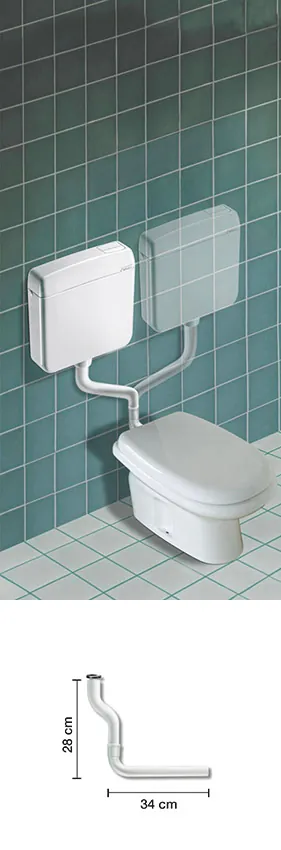

Flush pipes for Pucci VIVA exposed cistern – 80003425

80003425
n.1 Offset bend up to 6 cm
pipe 28 x 34 cm
Ø 50-40 mm white

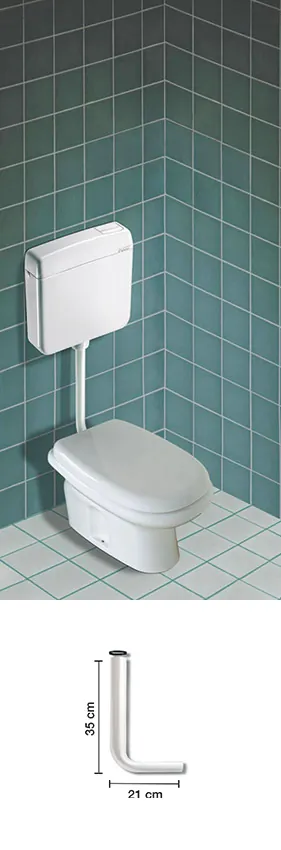

Flush pipes for Pucci VIVA exposed cistern – 80003310 4330

80003310
n.1 Bend 35 x 21 cm
Ø 50-40 mm white

80004330
n.1 Bend 35 x 21 cm
Ø 50-32 mm white

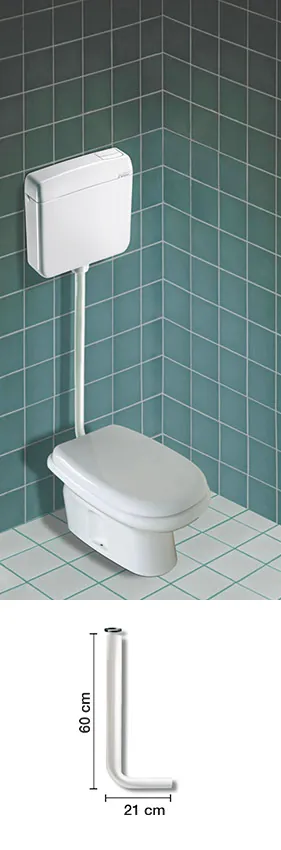

Flush pipes for Pucci VIVA exposed cistern – 80004340

80004340
n.1 Bend 60 x 21 cm
Ø 50-32 mm white

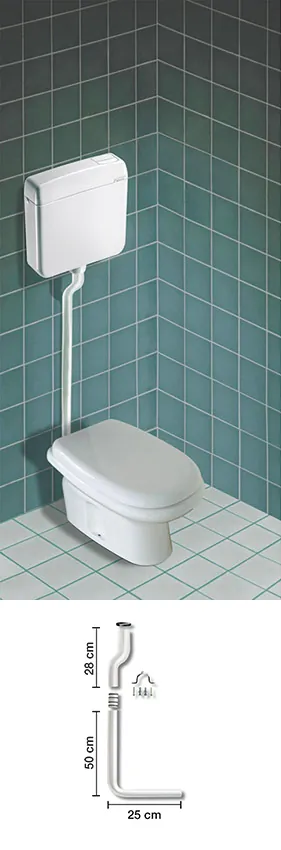

Flush pipes for Pucci VIVA exposed cistern – 80003370 4370

80003370
n.1 Mid-height pipe in 2 pieces with sleeve 78 x 25 cm Ø 50-40 mm

80004370
n.1 Mid-height pipe in 2 pieces with sleeve 78 x 25 cm
Ø 50-32 mm

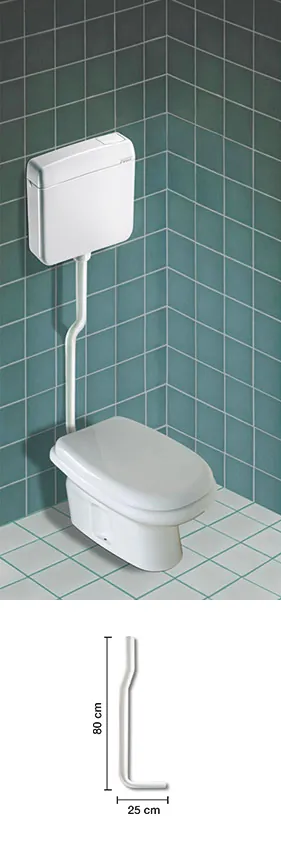

Flush pipes for Pucci VIVA exposed cistern – 80004350

80004350
n.1 One-piece pipe
80 x 25 cm
Ø 50-32 mm white

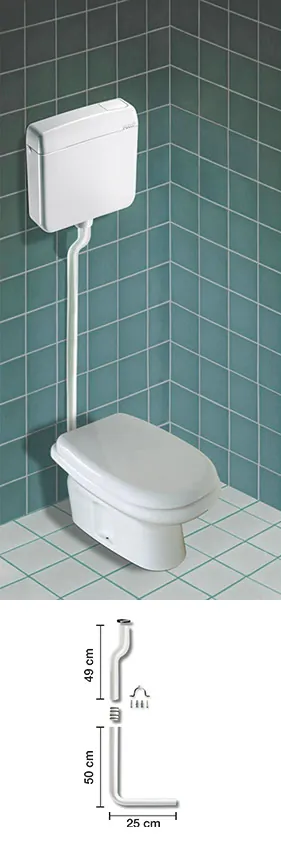

Flush pipes for Pucci VIVA exposed cistern – 80003390 4390

80003390
n.1 Mid-height pipe in 2 pieces with sleeve 99 x 25 cm
Ø 50-40 mm

80004390
n.1 Mid-height pipe in 2 pieces with sleeve 99 x 25 cm
Ø 50-32 mm

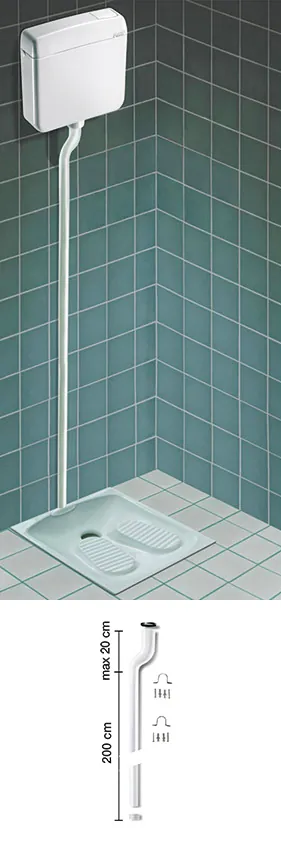

Flush pipes for Pucci VIVA exposed cistern – 80003500

80003500
n.1 High position for squat toilet, exposed pipe 200 cm
Ø 32-32 mm with Ø 50 - 32 mm connector, 6 mm seal
2 stainless steel hose clips with screws

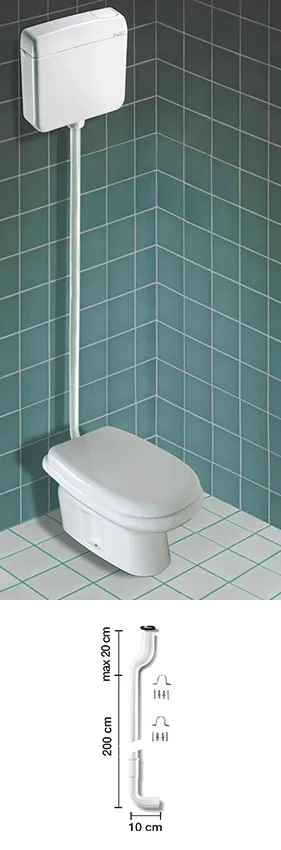

Flush pipes for Pucci VIVA exposed cistern – 80003630

80003630
n.1 High position for WC bowl - exposed pipe 200 cm Ø 32-32 mm with Ø 50 - 32 mm connector, 6 mm seal
2 stainless steel hose clips with screws, 90° bend
Ø 32-40 mm e OR 138

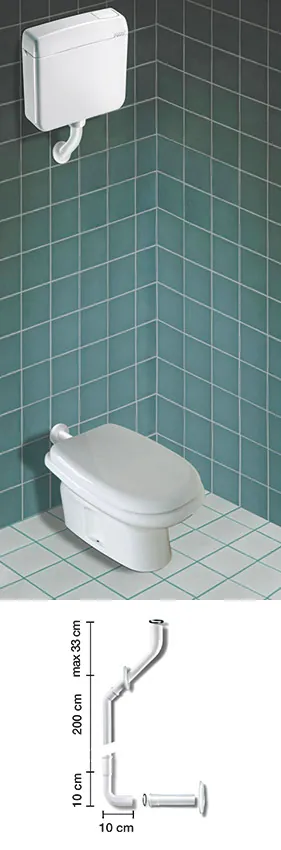

Flush pipes for Pucci VIVA exposed cistern – 80003730

80003730
n.1 High position for WC bowl, concealed pipe
200 cm Ø 32-32 mm, double 45° bend for connection
Ø 50-32 mm O-ring 126, 6 mm seal, rosette, 90° bend
Ø 32-40 mm, 2 O-rings 138, 22 cm connector and O-ring 143

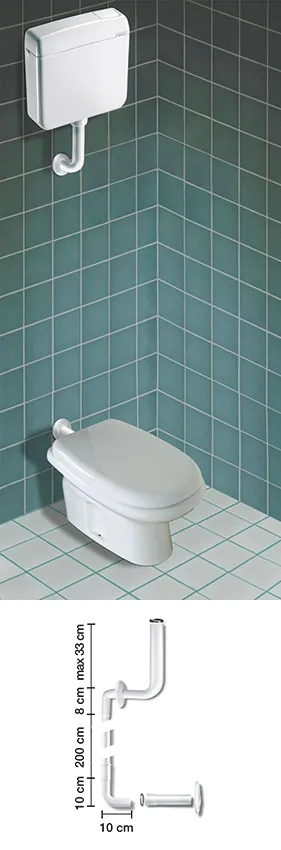

Flush pipes for Pucci VIVA exposed cistern – 80003735

80003735
n.1 High position for WC bowl, concealed pipe
200 cm Ø 32-32 mm, double 90° bend to connect the pipe to the cistern
Ø 50-32 mm O-ring 126, 6 mm seal, rosette, 90° bend
Ø 32-40 mm, 2 O-rings 138, 22 cm connector and O-ring 143

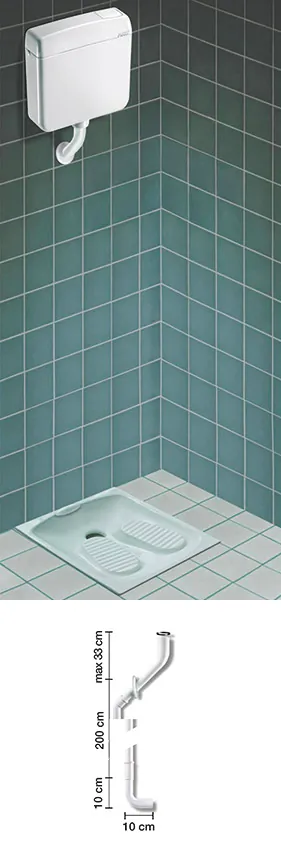

Flush pipes for Pucci VIVA exposed cistern – 80003830

80003830
n.1 High position for squat toilet - concealed pipe 200 cm Ø 32-32 mm, double 45° bend to connect the pipe to the cistern
Ø 50-32 mm O-ring 126, 6 mm seal, rosette, 90° bend
Ø 32-40 mm e 2 OR 138

Flush pipes for Pucci VIVA exposed cistern – 80003835

80003835
n.1 High position for squat toilet, concealed pipe
200 cm Ø 32-32 mm, double 90° bend to connect the pipe to the cistern
Ø 50-32 mm O-ring 126, 6 mm seal, rosette, 90° bend
Ø 32-40 mm e 2 OR 138
