PUCCI^® original spare parts

NOVA PRODUCED FROM 1995 TO 2006

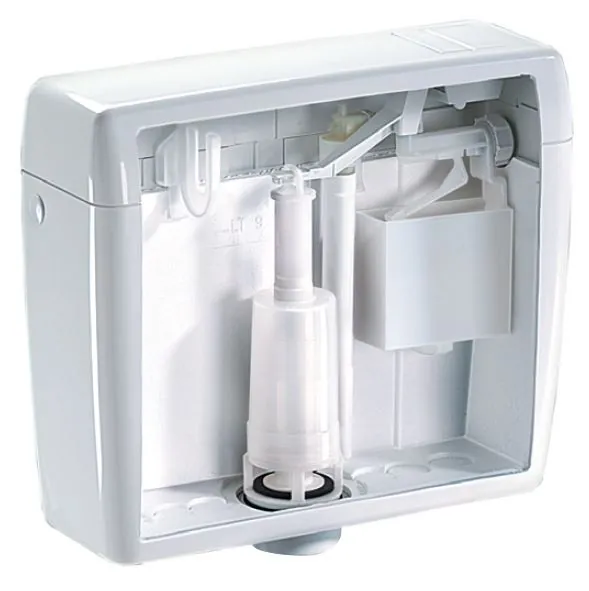

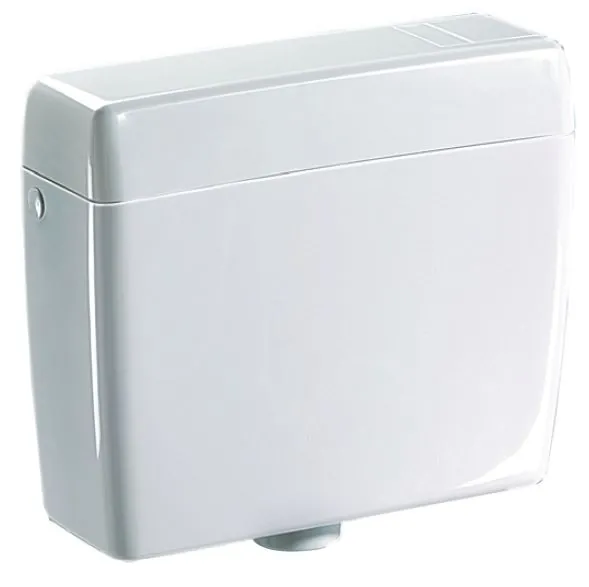

Pucci NOVA cistern 1995-2006

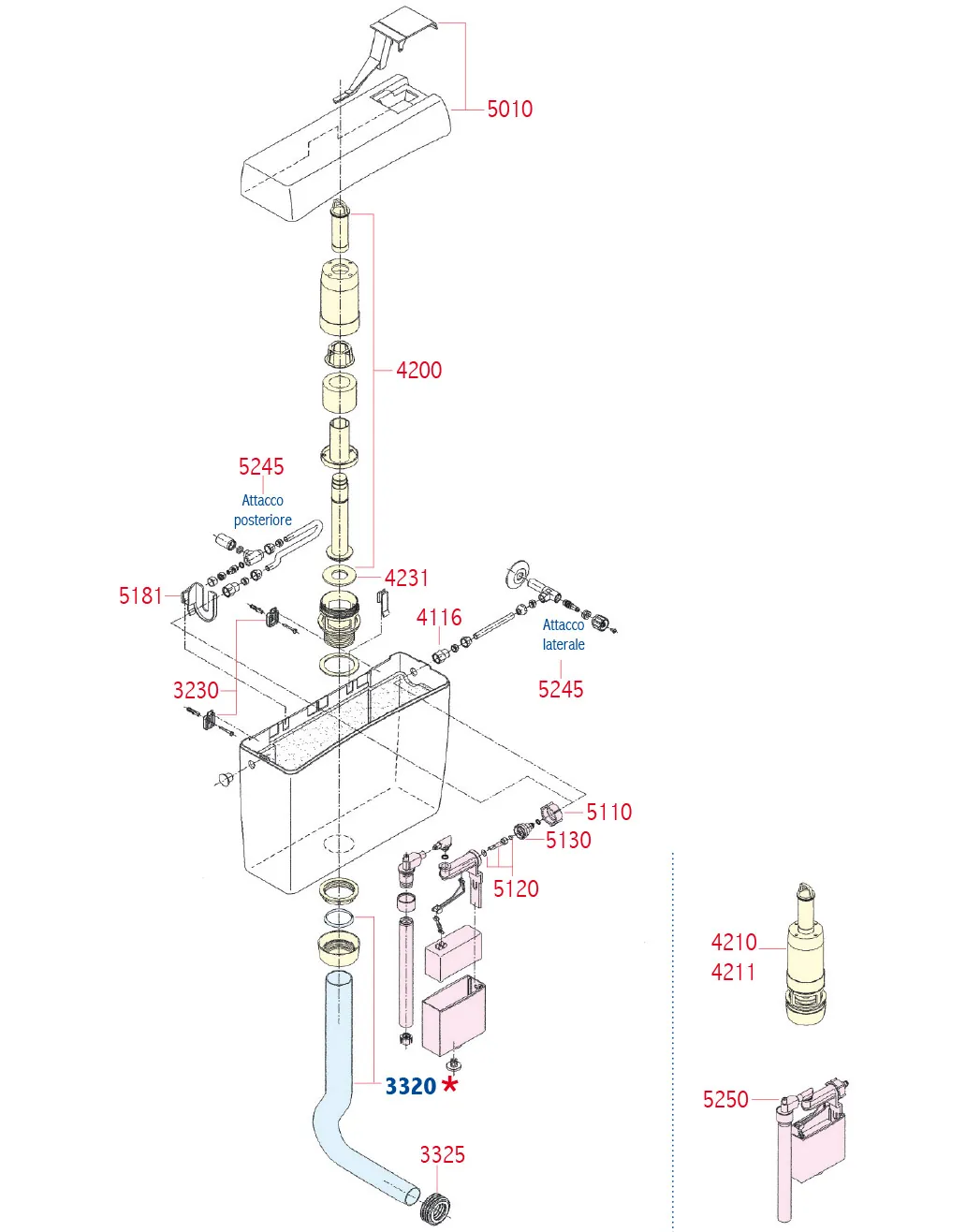

Code	Qty	Description
80003230	10	Support hooks with wall plugs
80003325	1	Clamp Ø 55-40 mm
80004116	5	Chrome fitting
80004200	5	Flush valve (removable part)
80004210	5	Complete flush valve
80004211	1	Complete flush valve
80004231	10	Para rubber base seal Ø 63x31x3 mm
80004270	5	Nut seat and ring nut seal
80005010	1	White lid with push-button
80005110	5	Threaded valve ring nut
80005120	10	Piston with seal
80005130	5	Valve tailpiece, seat and O-ring
80005181	5	Central inlet valve support
80005245	1	Universal connection kit
80005250	1	Complete valve assembly
*80133320	1	Bend 41 x 19.5 cm Ø 50-44 mm, rubber plug Ø 55-44 mm, white

For all other pipes refer to current production

Item 80003320 is no longer available and has been replaced by item 80133320
