PUCCI^® RAME

0RIGINAL SPARE PARTS

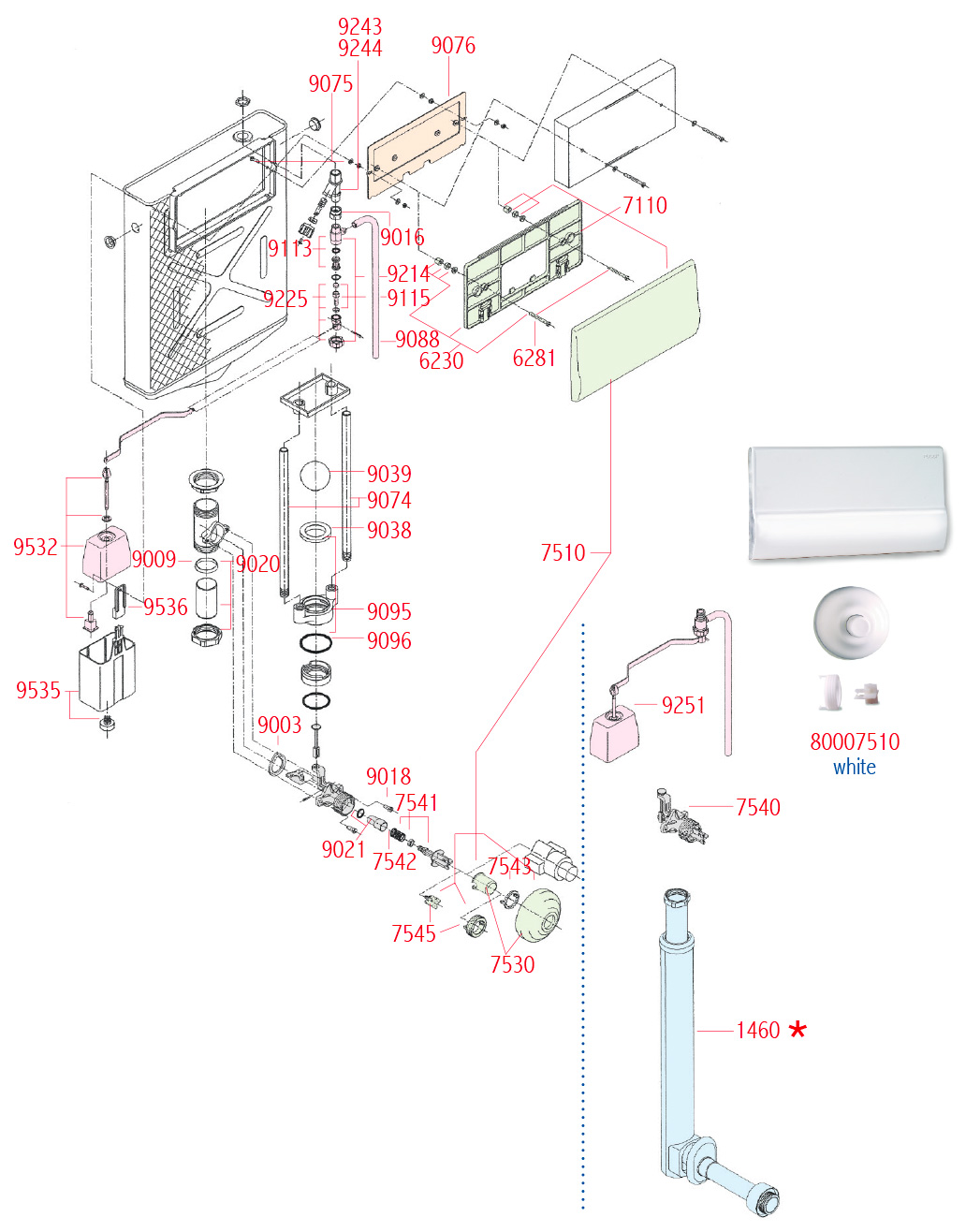

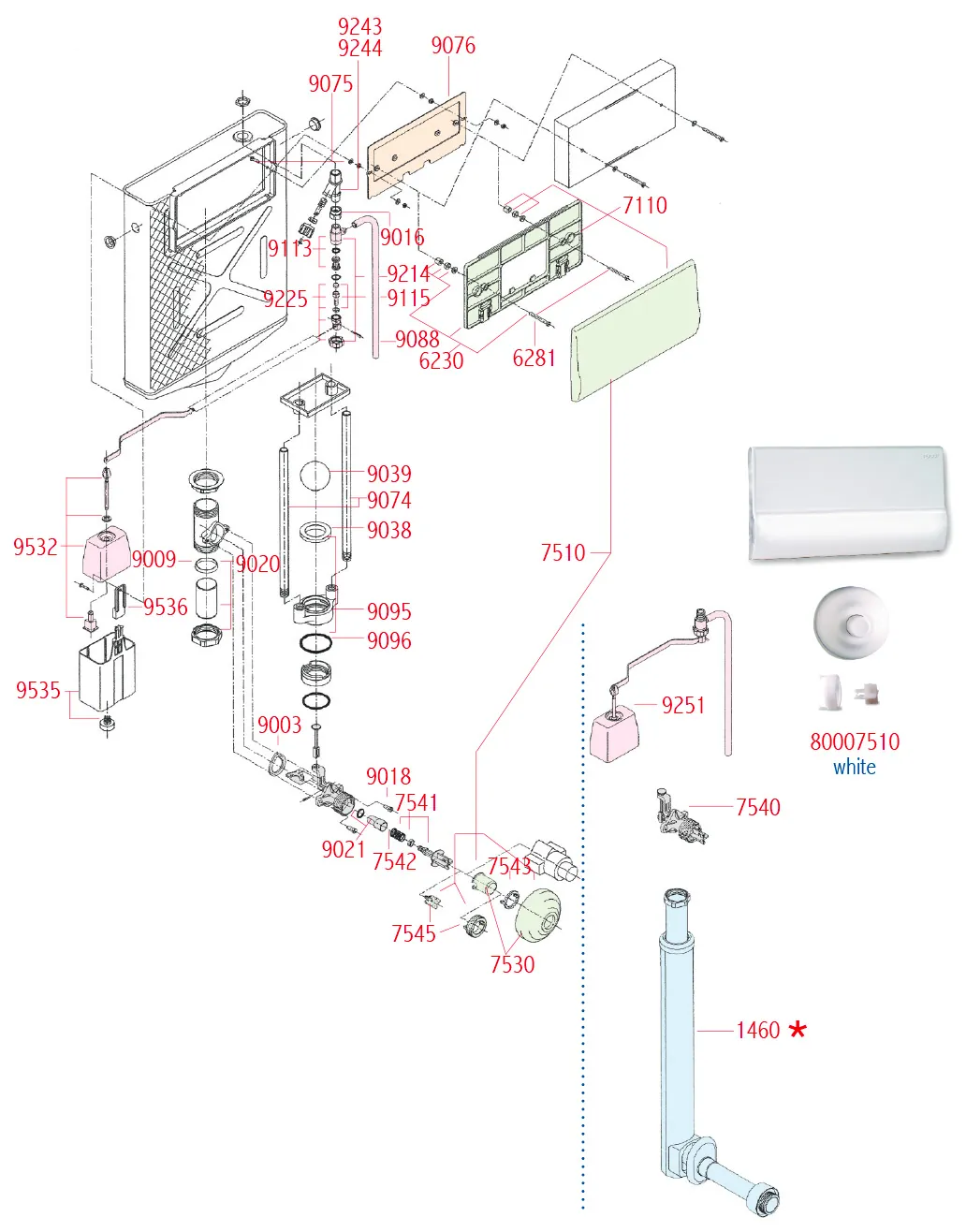

Pucci Copper low push-button cistern – spare parts exploded view with codes

For an easier installation, use the adjustable pipe

Code	Part	Description
80001343	1	20 cm plastic tang, conical gasket, OR 3168
80001460 *	1	56x11 cm adjustable flush pipe (+2-2 cm) with lining and cap, plastic tang, 22 cm joint, eccentric escutcheon and Ø 48-58 mm combined clamp and clamp cover-white
80006230	1	Plate support frame with M5 screws
80006281	10	M5 screws for frame
80007110	1	Cover plate with frame-white
80007510	1	Cover plate with frame, threaded escutcheon, push-button and extension up to 3 cm-white
80007530	1	Threaded escutcheon and push-button-white
80007532	1	Threaded escutcheon and push-button-chrome
80007540	1	Complete push-button with extension up to 3 cm
80007541	1	Push-button set with plunger, spring, lip gasket
80007542	5	Steel cylindric springs
80007543	5	Push-button siegers
80007545	5	Push-button extensions from 1 cm up to 3 cm
80009003	5	Shaped rubber gaskets
80009009	10	Tang conical gaskets
80009016	1	Right/left nut with 3/8” gasket
80009018	10	1/4” push-button fitting bolts for socket
80009020	1	Brass tang, tang nut and conical gasket
80009021	1	Small internal bushing with OR 119
80009038	10	Ball seat gaskets
80009039	1	Seal ball
80009057	5	Ball guide frames
80009074	6	47 cm overflow pipes suitable for all models
80009075	10	Inspection door set (screws and nuts)
80009076	5	Inspection door with M5 inserts
80009088	6	Silencer pipes suitable for all models
80009095	1	Pull-out seat with OR 161 and seat gasket
80009096	5	OR 161 for pull-out seat
80009113	1	Valve body with seat and OR 113
80009115	10	Plungers with lip gaskets and 10x5 mm gaskets
80009214	1	Central fitting valve
80009225	1	Central fitting valve head
80009243	1	Central fitting brass stop cock with 3/8” nut suitable for all models
80009244	1	Central fitting brass stop cock with 1/2” nut
80009250	1	Complete central fitting valve set for models up to 1989
80009251	1	Complete central fitting valve set suitable for all models
80009532	1	Polystyrene float
80009535	1	Small tank with valve
80009536	5	Tank supports with screws and zinc-plated washers
