PUCCI^® eco^®

ORIGINAL SPARE PARTS

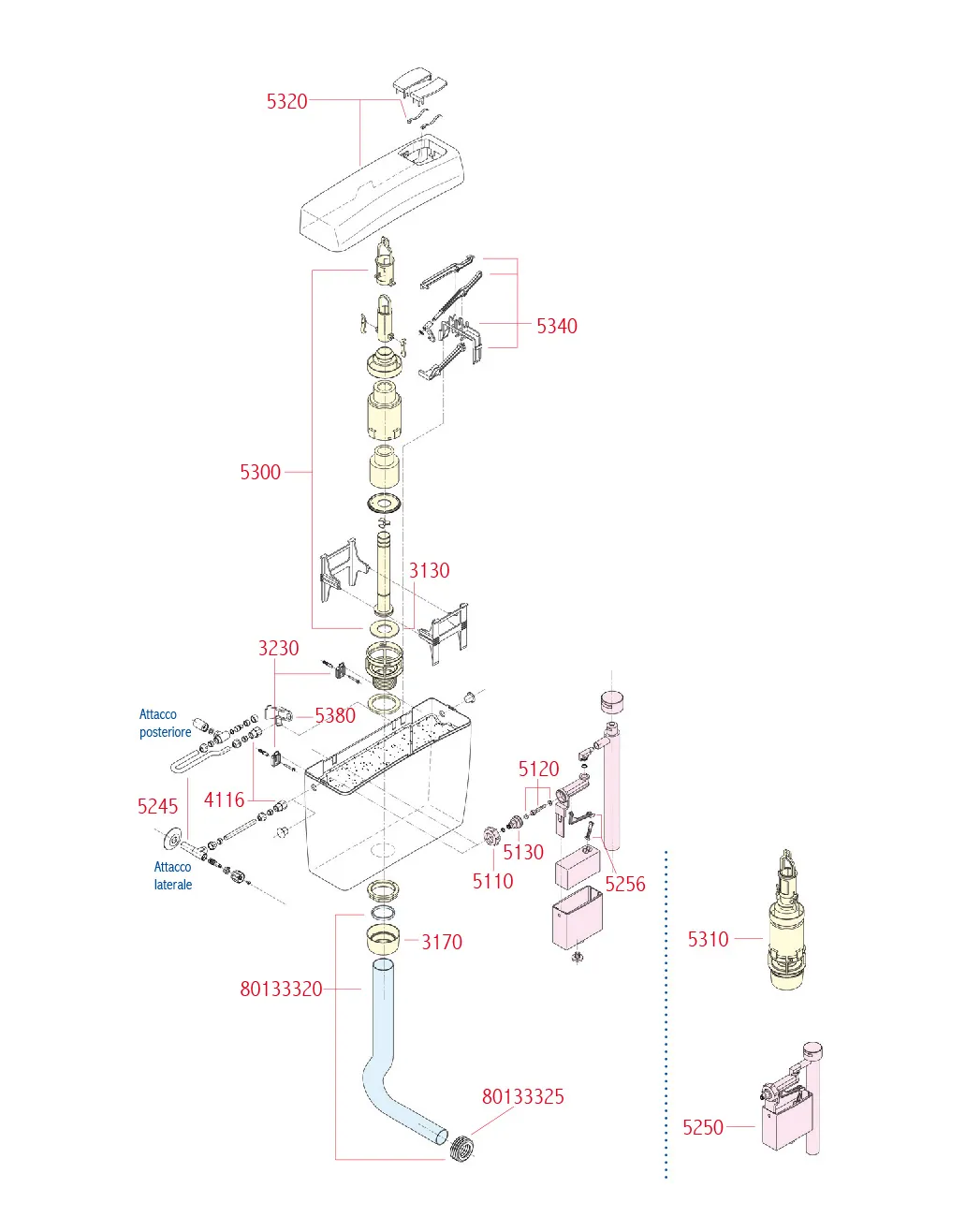

Code	Part	Description
80003130	10	Seat gaskets
80003170	1	White ring nut
80003230	10	Supporting hooks with screw anchors
80004116	5	Chrome-plated small fittings
80005110	5	Threaded valve ring nuts
80005120	10	Plungers with gaskets
80005130	5	Valve tangs, seats and OR
80005245	1	Universal connection complete pack
80005250	1	Complete valve set
80005256	1+1	Valve activation levers
80005300	1	Discharge group (pull-out section)
80005310	1	Complete discharge set
80005320	1	White cover with 9l and 4l push-buttons
80005340	1	9l and 4l supports and levers
80005380	5	Central valve connecting stands
80133320	1	41 x 19,5 cm Ø 50 - 44 mm flush elbow, white, with Ø 55 - 44 mm rubber plug
80133325	5	Ø 55 - 44 mm clamps
