PUCCI^® original spare parts

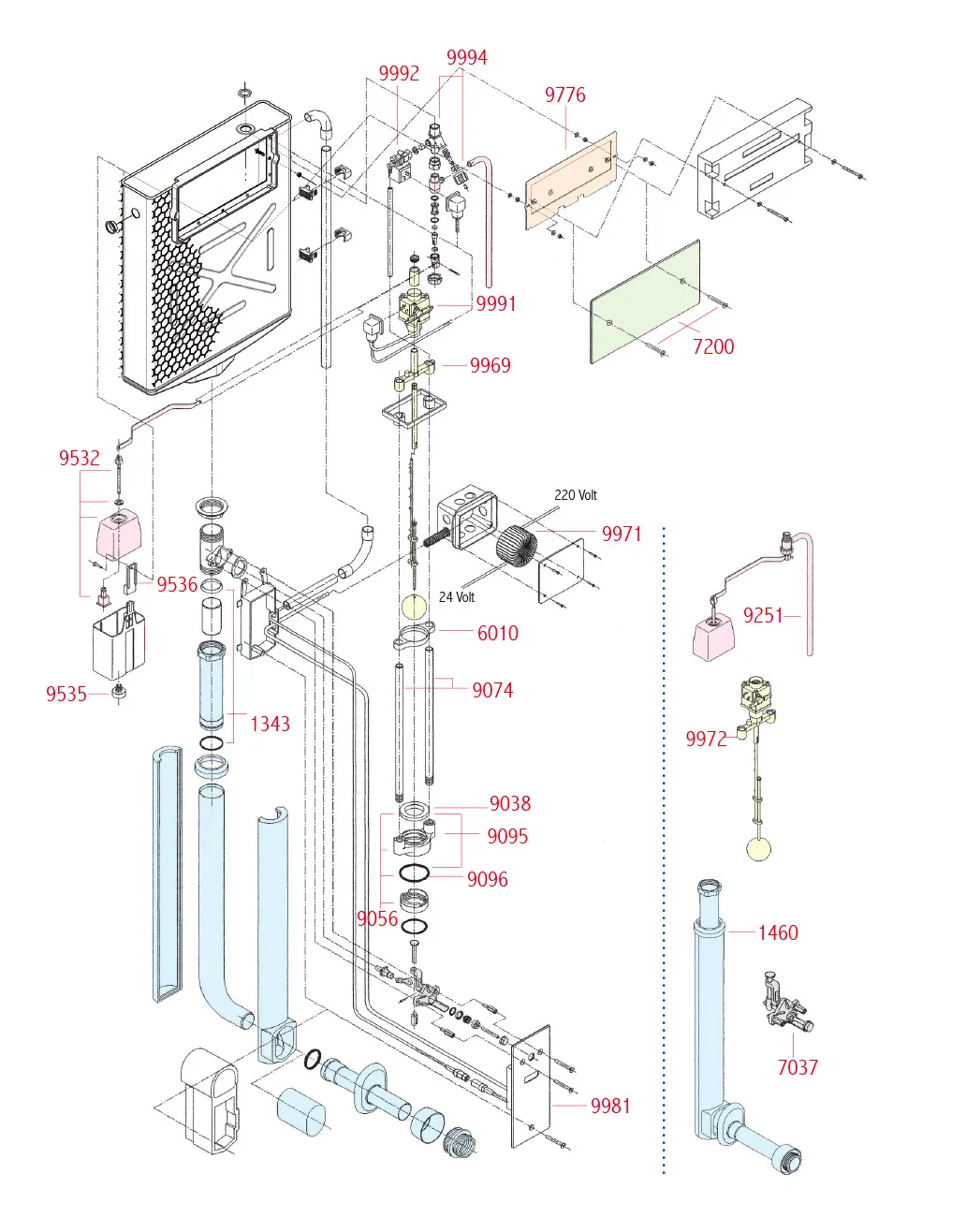

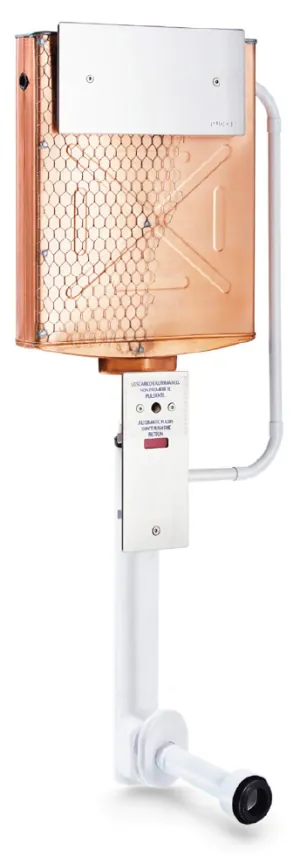

TRONIC PRODUCED FROM 1990 TO 2020

Code	Qty	Description
80001343	1	Plastic tailpiece 20 cm, conical seal, O-ring 3168
80001460	1	Flush pipe assembly 56 cm with covering and cap, plastic tailpiece 20 cm, conical seal, O-ring 3168, 22 cm connector, eccentric rosette, combined clamp - white
80006010	5	Ball guide frame
80007037	1	Manual emergency push-button
80007200	1	Stainless steel plate - vandal-proof
80009038	10	Ball seat seal
80009056	1	Removable flush seat for copper and 6/8, brass ring, ball seat seal
80009074	6	Overflow pipe 47 cm for all models
80009095	1	Removable seat with O-ring 161 and seat seal
80009096	5	O-ring 161 for removable seat
80009251	1	Complete valve assembly, central inlet, for all models
80009532	1	Polystyrene float
80009535	1	Cup with small valve
80009536	5	Cup support bracket with screw and galvanised washer
80009776	1	Access door with M6 inserts
80009969	1	Telescopic support
80009971	1	Transformer 220-24 VAC
80009972	1	Ball-lifting unit
80009981	1	Stainless steel electronic control
80009991	1	Ball-lifting solenoid
80009992	1	Water-film control solenoid valve
80009994	1	Three-way valve with filter

Code	Qty	Description
80007036	1	Manual emergency push-button
80009980	1	Electronic control with white emergency push-button and connector
80009983	1	White electronic control with long cable
80009984	1	Stainless steel electronic control with long cable

PUCCI® original spare parts
