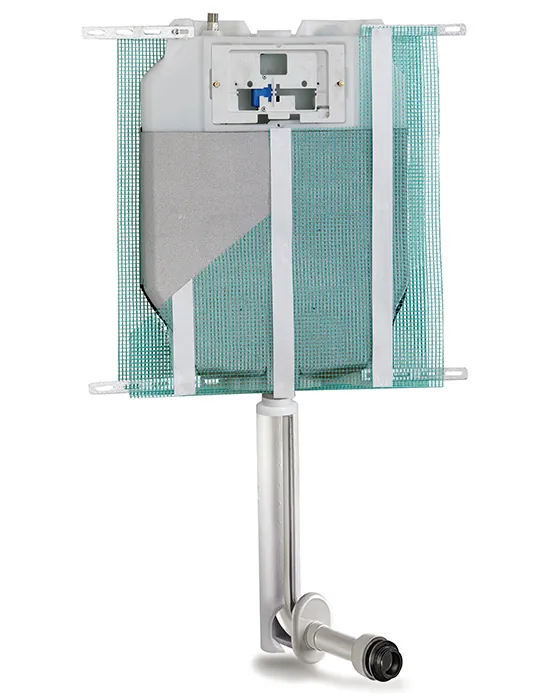

PUCCI^® eco^® 9l - 4l / 6l - 3l SFIORO^®

FOR BRICK WALLS - FOR FLOOR MOUNTED BOWL

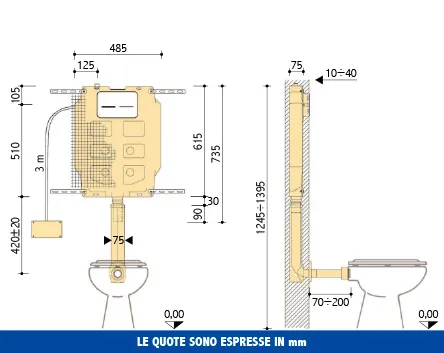

rinsing pipe adjustment
4 cm (+ 2 - 2 cm) after installation

1415490201

eco^® sfioro^® 9l – 4l / 6l – 3l
Anti-condensation

TECHNICAL DATA

dynamic pressure 0,1-10 bar

maximum water temperature 25°C

rinsing quantity predetermined setting - out 9-4l

long - rinsing regulation range 9-6l

short - rinsing regulation range 4-3l

FIELDS OF APPLICATION

For brick wall
For floor-mounted bowl
Two quantities rinsing 9-4l/ 6-3l

FEATURES AND EQUIPMENT

Polyethylene tank 7,5 cm total thickness
Anti-condensation
Plaster holder pre-built mesh
Frontal servocontrol with two quantities rinsing
Water connection from above misaligned on the left
1/2” stop cock with support
4 supporting brackets with tank fastening screws
35x11 cm adjustable flush pipe (+2-2 cm)
Polystyrene foam protection, covers and cap for rinsing pipe adjustment
Eccentric escutcheon and 22 cm joint
Ø 48-58 mm combined clamp with clamp cover
From Ø 40 mm to Ø 45 extension socket, OR 143 and Ø 55-44 clamp
Gasket lubricant package
Polystyrene foam protection for door and inner parts

220 VAC-12 VDC power supply with 3 mt cable and connector
Recessed box and sheath (3 mt)
