PUCCI^® eco^® 6l - 3l SFIORO^®

FOR BRICK WALLS - FOR FLOOR MOUNTED BOWL

Pucci Eco 6/3 l Sfioro

rinsing pipe adjustment
4 cm (+ 2 - 2 cm) after installation

2315360202

eco^® sfioro^® 6l – 3l
Anti-condensation

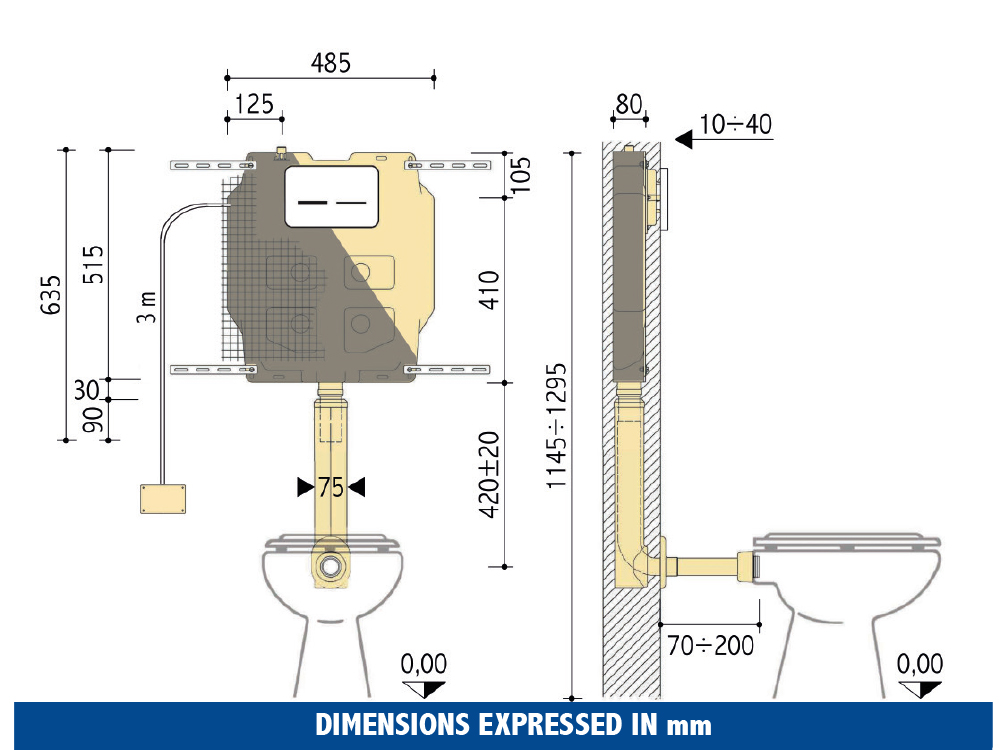

Pucci Eco 6/3 l Sfioro – technical drawing with dimensions

TECHNICAL DATA

dynamic pressure 0,1-10 bar

maximum water temperature 25°C

rinsing quantity predetermined setting - out 6-3l

FIELDS OF APPLICATION

For brick walls
For floor-mounted bowl
Two quantities rinsing 6l - 3 l

FEATURES AND EQUIPMENT

Polyethylene tank 8 cm total thickness
Anti-condensation
Plaster holder pre-built mesh
Water connection from above misaligned on the left
1/2" stop cock with support
4 supporting brackets with tank fastening screws
35 x 11 cm adjustable flush pipe (+2-2 cm)
Foam protection, covers and cap for rinsing pipe adjustment
Eccentric escutcheon and 22 cm joint
Ø 48-58 mm combined clamp with clamp cover
From Ø 40 mm to Ø 45 extension socket, OR 143 and Ø 55-44 mm clamp
Gasket lubricant package
Foam protection for door and inner parts

220 VAC - 12 VDC power suppy with 3 m cable and connector
Frontal servocontrol with two quantities rinsing
Recessed box and sheath 3 m
