PUCCI^® eco^® MATIC 6l - 4l MODULO

ELECTRIC PULSE - FOR BRICK WALLS - FOR FLOOR MOUNTED BOWL

Pucci Eco Matic 6/4 l Modulo

2323360203

eco matic 6l - 3l
Anti-condensation

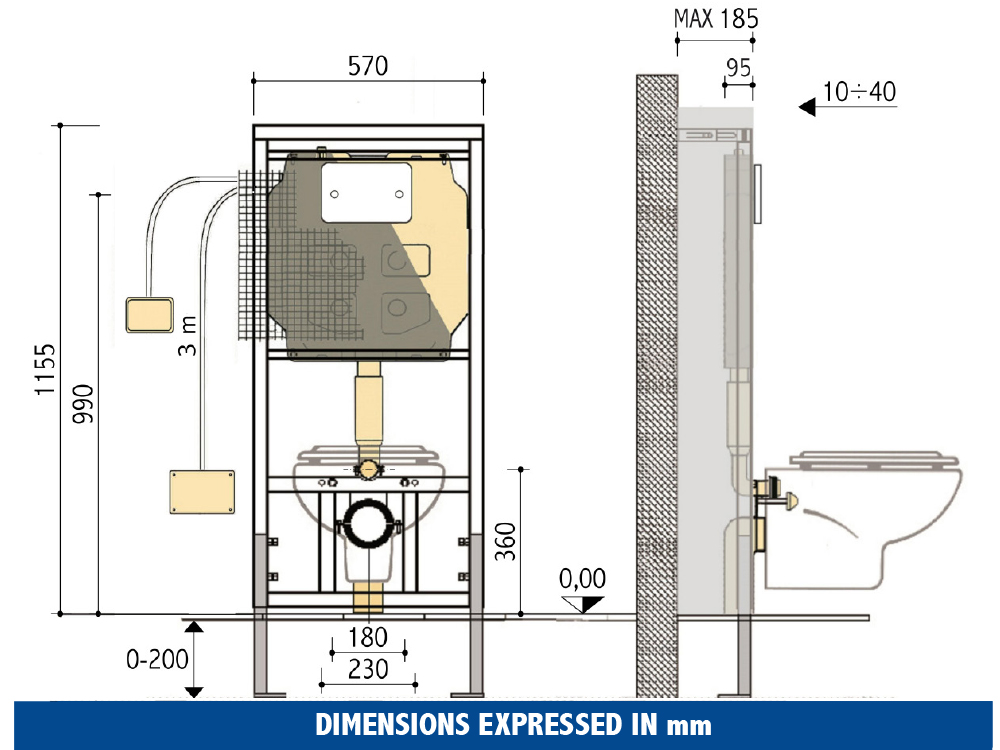

Pucci Eco Matic 6/4 l Modulo – technical drawing with dimensions

TECHNICAL DATA

dynamic pressure 0,1-10 bar

maximum water temperature 25°C

rinsing quantity predetermined setting - out 6-3l

Spare parts Accessories Buttons - Plates Sanitary stands

FIELDS OF APPLICATION

Partial or total height front brick wall fixing
Light plasterboard walls
For wall mounted bowl
Two quantities rinsing 6l - 3 l

FEATURES AND EQUIPMENT

Polyethylene tank 8 cm total thickness
Anti-condensation
Plaster holder pre-built mesh
Water connection from above misaligned on the left
1/2" stop cock with support
23 x 25 cm flush pipe and protection cap
Ø 60-40 mm rubber plug
From Ø 40 mm to Ø 45 extension socket OR 143 and Ø 55-44 mm clamp
Gasket lubricant package
Foam protection for door and inner parts

220 VAC - 12 VDC power suppy with 3 m cable and connector
Frontal servocontrol with two quantities rinsing
Recessed box and sheath 3 m
Recessed box 503 and sheath 1,5 m

Dust-painted selfstanding frame
Frame profile width 35 mm
Distance between bowl fitting holes 180/230 mm
2 M12 threaded rods with bowl fixing nuts
Adjustable basic from 0 to 200 mm zinc-coated plates to be anchored
Basic revolving plates
Ø 110-90 mm reduction ring
Ø 90 mm PE flush curve with gasket
Ø 90 mm protection cap
Ø 90 mm extended sleeve with gasket
2 washers with eccentric short joint for WC regulation
2 protection caps
Fixing materials, brackets and plugs
