PUCCI^® eco^® 9l - 4l MONTAGGIO RAPIDO^®

FOR BRICK WALLS OR FRONT ASSEMBLY - FOR WALL MOUNTED BOWL

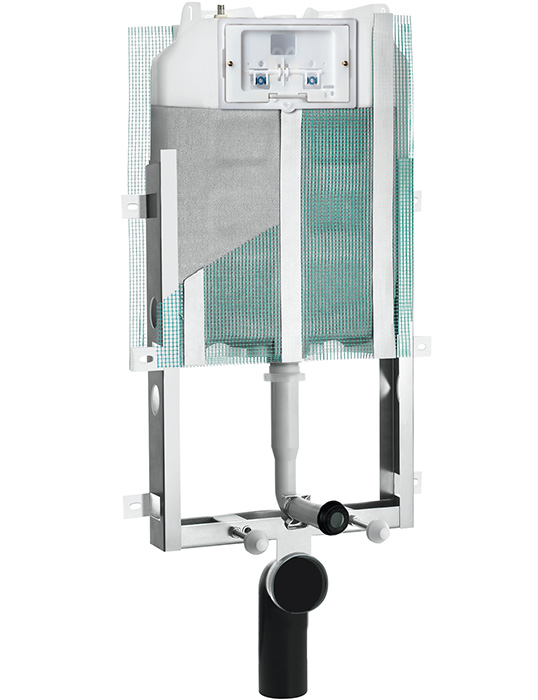

Pucci Eco 9/4 l Montaggio Rapido

1322490201

eco^® 9l – 4l
Anti-condensation

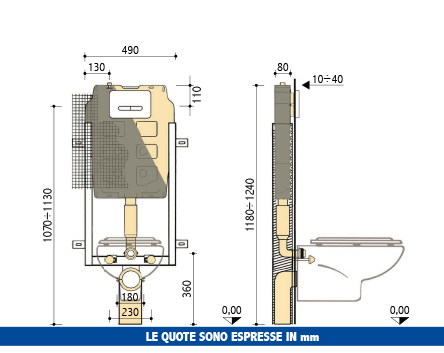

Pucci Eco 9/4 l Montaggio Rapido – technical drawing with dimensions

TECHNICAL DATA

dynamic pressure 0,1-10 bar

maximum water temperature 25°C

rinsing quantity predetermined setting - out 9-4l

long - rinsing regulation range 9-6l

short - rinsing regulation range 4-3l

Pucci Eco 9/4 l Montaggio Rapido

Spare parts Accessories Sanitary stands

FIELDS OF APPLICATION

For brick walls
Partial or total height front wall fixing
For wall mounted bowl
Two quantities water rinsing

FEATURES AND EQUIPMENT

Polyethylene tank 8 cm total thickness
Anti-condensation
Plaster holder pre-built mesh
CFront control with two quantities rinsing
Water connection from above misaligned on the left
1/2” stop cock with support
23 x 25 cm flush pipe and protection cap
Ø 60-40 mm rubber plug
From Ø 40 mm to Ø 45 extension socket,
OR 143 and Ø 55-44 clamp
Gasket lubricant package
Polystyrene foam protection for door and inner parts

Zinc-coated frame with 6 expandible fastening straps
Distance between bowl fitting holes 180/230 mm
2 M12 threaded rods with bowl fixing nuts
Ø 90 mm snap collar for flush curve
Ø 90 mm PE flush curve mm with gasket
Ø 90 mm protection cap
Ø 90 mm extended sleeve with gasket
2 washers with eccentric short joint for WC regulation
2 protection caps
Fixing materials, brackets and plugs
